BOLE EKH-EVO SERIES – INJECTION MOULDING MACHINE
Central Clamping Structure, Invention Patent
01.High Utilization of Clamping Force
- After sample survey, clamping force efficiency of BOLE central clamping toggle design can reach 100%. Clamping force efficiency of traditional edge clamping force only can reach 80-85%.
02.Material Saving
- BOLE central clamping toggle design can save 2-5% material for 80% of customers mould (comparing to customer’s molds traditional clamping toggle design)
03.High Accuracy Less Possibility of Flash
- Repetitive positioning accuracy of mold opening&closing: ± 1 mm.
- Product weight repetitive accuracy: ‑ 0,5%.
- Less possibility of flash and save flash trim process.
04.Offer Better Protection For Molds and Platens
- The latest design of clamping structure, averaged force and less distortion for mould platen. Precise low-pressure function for mould closing, proportional pressure control, iso-stress mould platen design, to extend mould life.
05.Bigger Opening Stroke
Central clamping structure can provide bigger opening stroke & ejector stroke than other brands’ stroke and can install larger molds easier (Especially for deep cavity working condition)

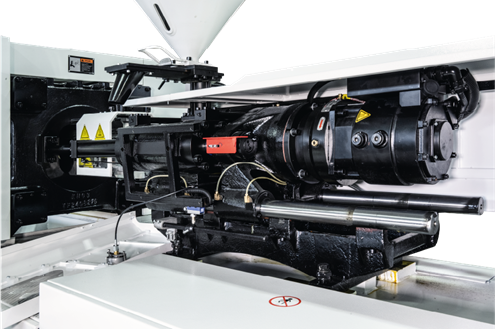

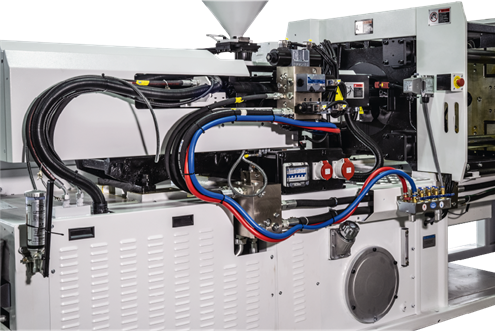

Electric Plasticizing Advantage
- Stable output, precision.
- More silent, more energy efficient.
- Slimplify structure and clean production.
- Parallel movement capability, high production efficiency.
-
Provide custom-made solution as the special requriements and largest injection capacity reach to 250 kg.
